Real-time teleoperation
Human thumb-index gestures are retargeted to the generated hand using only inverse kinematics.
Project page
Generating Robot Hands from Human Demonstrations
Human motion can be used not only to train robot policies, but also optimize hardware designs.
UC San Diego | Amazon Frontier AI and Robotics
Abstract
We present a data-driven framework for generating robot hands from human demonstrations. Instead of tightly coupling the hardware design with a specific control policy, the hand is designed under the same controller used after fabrication: inverse kinematics that matches target thumb-index fingertip motion. The framework produces a high-DoF generalist hand for a wide range of daily tasks and lower-DoF specialized hands whose mimic joints encode structured task motions directly into hardware.
4M+
human demonstration frames used
0.24 mm
overall 6-DoF fingertip tracking error
95.38%
overall tracking error within 1 mm
< 30 min
design generation time of specialized hands
High-DoF Generalist Hardware
The 6-DoF design is optimized over the full human motion dataset. After fabrication, it uses online inverse kinematics to retarget thumb-index fingertip motion in real time.
Precise fingertip tracking
Without the need of complex retargeting algorithms, the generalist hand can perform precise tasks like holding a napkin while moving fingers.
Non-teleoperatable trajectories
Fingertips trace structured paths that are difficult to teleoperate directly.
Table 1. Full-Dataset Coverage of thumb and index fingers
Percentage of frames with fingertip error below 1 mm.
| DoF | Hand | Thumb | Index |
|---|---|---|---|
| 3 | 3-DoF mimic-joint hand | 12.22% | 2.39% |
| 3-DoF fully actuated hand | 10.07% | 4.98% | |
| Inspire Hand | 0.00% | 0.04% | |
| 4 | 4-DoF fully actuated hand | 16.27% | 10.60% |
| 5 | 5-DoF fully actuated hand | 63.12% | 40.56% |
| 6 | XHand robot hand | 83.69% | 3.77% |
| 6-DoF fully actuated hand | 95.38% | 98.19% |
Low-DoF Specialized Hardware
For specific tasks, the method generates 3-DoF hands with spatial four-bar mimic joints. The passive coupling reduces actuation (and cost!) while preserving the target behavior.
Twist lid off
A lid-twisting human motion > coupled motion rotates the lid.
Input demo
Generated hand
Key insertion
A key insertion demonstration > task-specific hand that holds and inserts the key.
Input demo
Generated hand
Circle-square mimic
Predefined trajectory (the thumb follows a circle while the index finger follows a square) > generated hand that tracks the motion.
Target trajectory
Generated hand
Table 2. Task-Specific Tracking Error
Mean +/- standard deviation fingertip error in millimeters. Lower is better.
| Task | Hand | Thumb | Index | Overall |
|---|---|---|---|---|
| Lid-off | 3-DoF mimic-joint hand | 1.888 +/- 2.257 | 2.784 +/- 2.775 | 2.336 +/- 2.569 |
| 3-DoF fully actuated hand | 1.457 +/- 1.903 | 2.535 +/- 2.688 | 1.996 +/- 2.390 | |
| Key | 3-DoF mimic-joint hand | 2.031 +/- 1.694 | 0.174 +/- 0.256 | 1.102 +/- 1.526 |
| 3-DoF fully actuated hand | 2.282 +/- 1.756 | 3.583 +/- 2.690 | 2.933 +/- 2.362 | |
| Circle-square | 3-DoF mimic-joint hand | 0.015 +/- 0.005 | 1.295 +/- 0.960 | 0.655 +/- 0.933 |
| 3-DoF fully actuated hand | 0.009 +/- 0.002 | 10.851 +/- 4.477 | 5.430 +/- 6.278 |
Manufacturing Pipeline
We use simple geometries to generate the robot hand mesh, then polish it in Fusion 360.

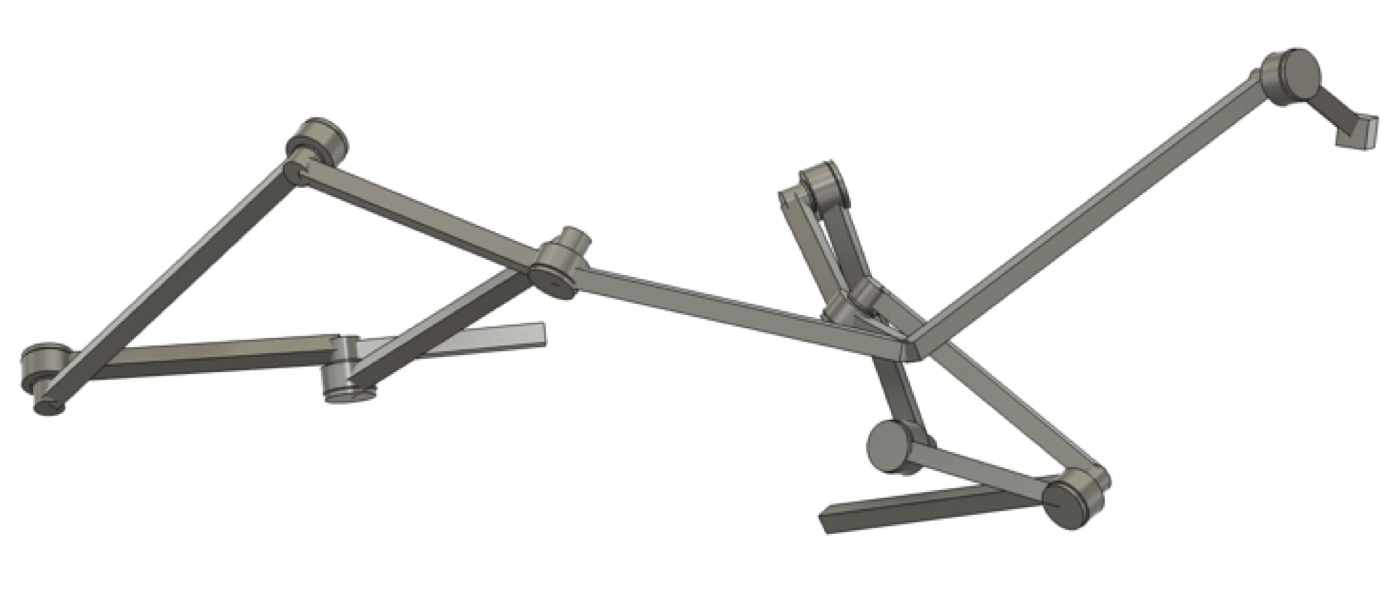

Generate robot hand mesh
3D print it and remove support
Print-in-place joints

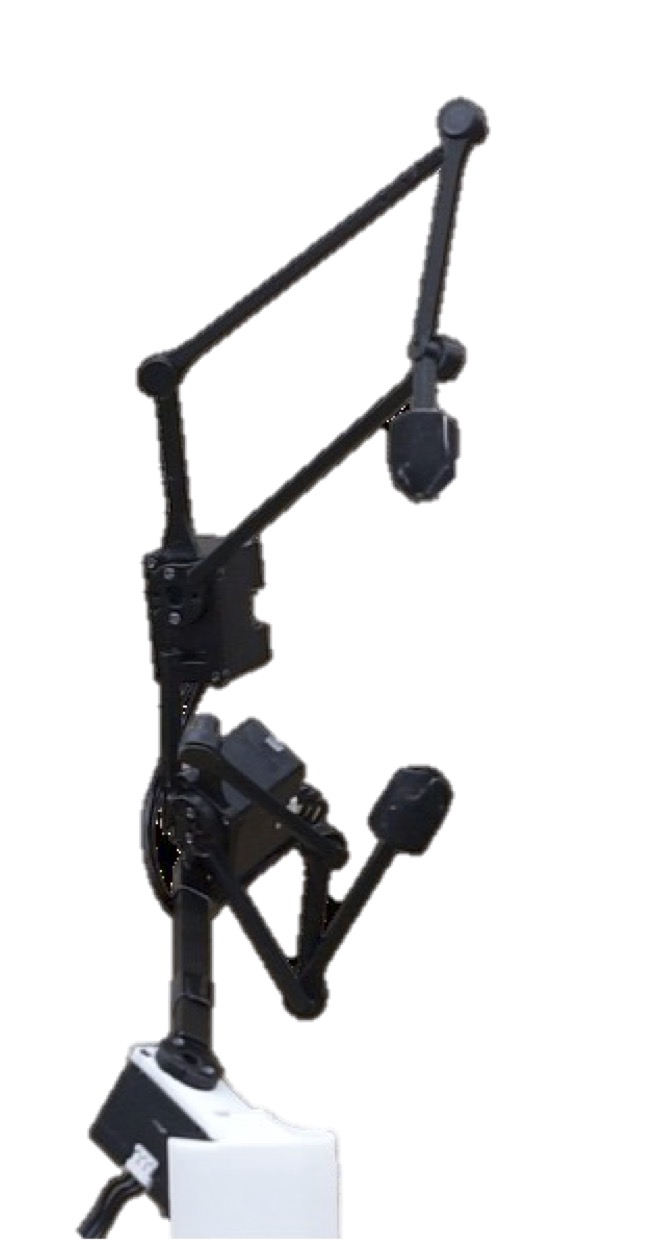

Attach the motors to the motor holders at the actuated joints.
Actuate the hand
Method
The method learns hardware under the same simple controller used after fabrication. A trajectory-conditioned actor accelerates low-DoF generation by proposing hardware and control initializations before refinement.
BibTeX
@article{yi2026generating,
title = {Generating Robot Hands from Human Demonstrations},
author = {Yi, Sha and Hansen, Nicklas and Bai, Xueqian and
Sferrazza, Carmelo and Tolley, Michael T. and Wang, Xiaolong},
year = {2026},
url = {https://arxiv.org/abs/2606.20549}
}
